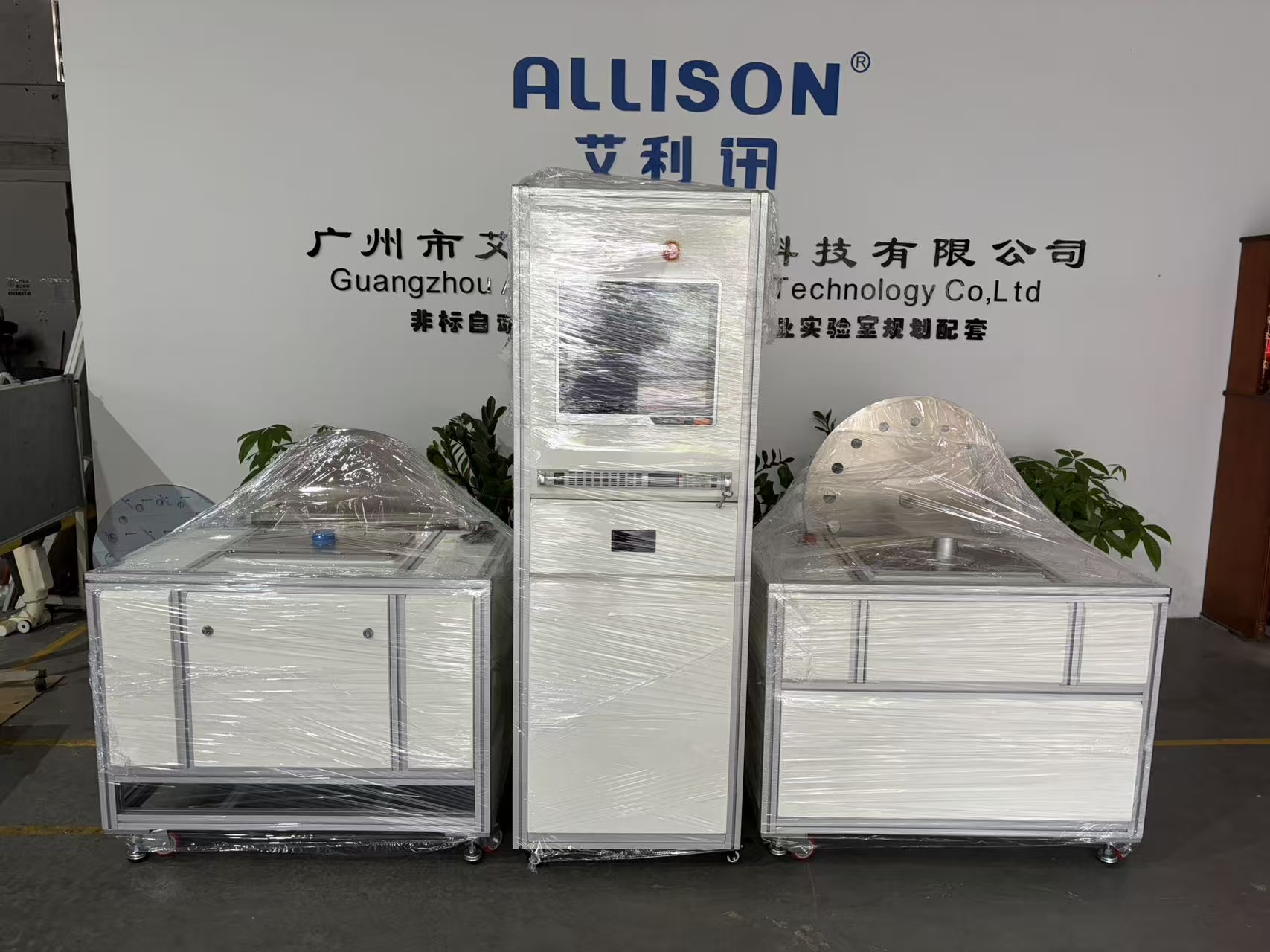

1. The anti water pressure sealing testing machine is customized according to relevant testing standards, industry standards, and customer testing requirements. The equipment meets the mechanical performance requirements of product sealing performance, high water pressure, dynamic pressure, static pressure, etc., including pressure pulse testing and pressure holding testing. Adopting a dual stage vertical southern water pump pressure drive source, high water pressure and low water pressure are alternately switched for use. High frequency pressure pulse tests, low water pressure pulse tests, ultimate burst tests, flow performance tests, and static pressure holding tests are conducted on the tested products in the pressure range of 0.1-4.0 Mpa. Using Siemens PLC control, conduct a comprehensive evaluation of the operating conditions of the tested production port. The testing machine is mainly used to check whether the product meets the relevant design requirements.

2. The testing machine is controlled by Siemens PLC and displayed on a 10 inch monitor. Complete relevant experiments through parameter setting and control. Using a two-stage water pump as the water pressure drive, the pressure sensor and flow meter monitor the test data in real time. Our independently developed testing system displays the relevant test pressure curve and flow rate in real time. Based on the relevant test data, waveform curves, sine, trapezoidal, and static are automatically generated. The PLC automatically records and saves the relevant test data, and users can export the data through USB and connect it to a printer for printing the test report.

3. The testing machine adopts ergonomic design, aluminum profile: 4040 national standard, aluminum-plastic panel: 5mm thick, color flashing silver, aluminum coating thickness of 18 wires. Open structure+anti welding protective cover and automatic shutdown function when opening the door. The experimental door adopts a mesh explosion-proof door design, and the working platform is an integrated design of 304 water pan and other control cabinets. Can effectively prevent rust and carry out testing water recovery effectively. The equipment operation adopts a self-developed system, which is easy to operate and does not require a dedicated person to operate.
