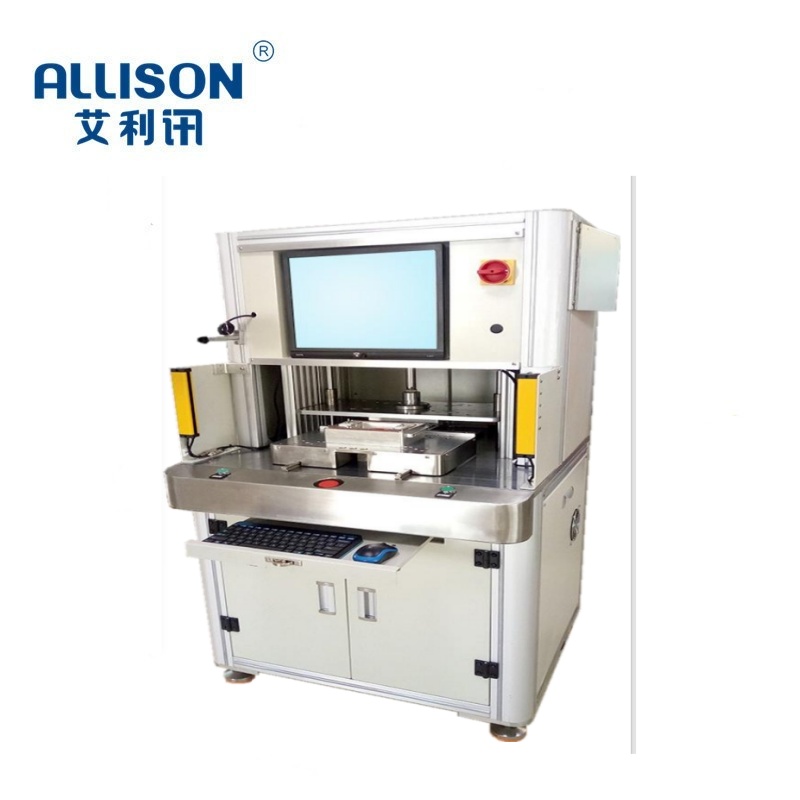

1. Pre filter flow detection platform, designed according to customer requirements and industry related testing standards, suitable for online flow detection of pre filter products. It adopts a 1-to-5 series installation, automatically clamped and assembled through a mobile module, and provides constant pressure water supply from 0-1.0Mpa through a variable frequency water pump. Through constant pressure, real-time flow detection of the tested pre filter products is manually observed.

2. The testing platform mainly consists of the testing platform, product fixed module, constant pressure variable frequency water supply, recovery water tank, constant pressure control system and other main parts. The control system adopts a 7-inch touch screen control, with a variable frequency water pump as the constant pressure drive source. Relevant parameters are set through PLC, and the system automatically saves relevant test data, which can be exported through USB.

3. The testing machine is assembled with aluminum profiles and 304 # sheet metal, and the internal pipelines are connected by pressure and high temperature resistant PPR water tanks. There are recyclable water tanks under each workstation platform, and they are equipped with filtering devices before recycling, which can greatly reuse the recycled water. Product clamping adopts an electric fast clamping fixture for multi station series clamping and clamping. The detection is equipped with running, stopping, and alarm indicator lights, and there are mobile casters under the equipment with foot cups for device fixation. The appearance of the equipment is neat and beautiful.
