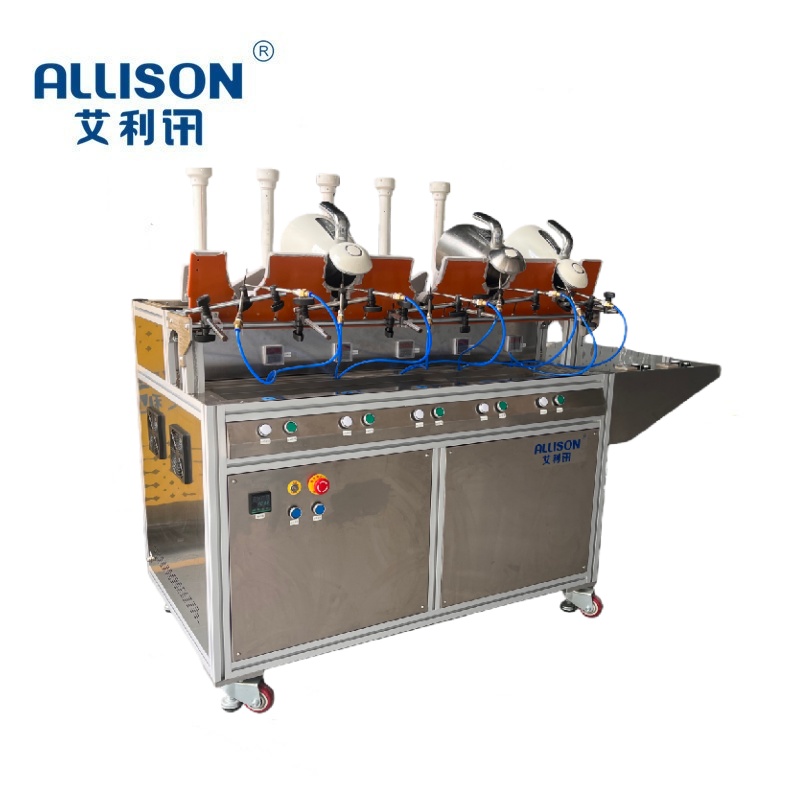

The main purpose is to blow dry/dry electric kettles on production lines to improve production capacity and save manpower. The testing bench is commonly used for over 90% of electric kettles in the market and is suitable for mechanical electric kettles/health kettles. The testing platform is made of 304 # stainless steel sheet metal with a thickness of 1.0 (surface brushed) and assembled with aluminum profiles. The placement platform is made of electric wood material. The fixed fixtures at each workstation are processed from nylon village materials, effectively preventing product scratches during the operation process. The testing platform adopts a 7-inch touch screen display and PLC control. Through various drying stations and parameters, the control system collects and judges the current, voltage, and power of the tested electric kettle in real time.

The testing fixtures are arranged in a 5+5 configuration, with 5 drying stations and 5 blowing stations. The arrangement adopts a front blow drying and rear drying method. Each workstation is independently controlled and timed, and equipped with work operation indicator lights. After the time is up, it will give independent alarms and prompts.

The testing equipment runs stably and is easy to maintain. Touchscreen human-machine dialogue interface, with simple software design and convenient operation; All parameter settings and status information display for each workstation are completed on the touch screen; Display and record product related voltage and current on the operation panel. The equipment has functions such as fault alarm, counting to alarm, and safety protection devices such as leakage protection and undervoltage protection.
